Using 2D skeletonisation to improve the length measurements of the leaves in a 3D maize plant segmentation#

[1]:

import cv2
import os
import matplotlib.pyplot as plt

from openalea.phenomenal.tracking.leaf_extension import (
    skeleton_branches,
    compute_extension,
    leaf_extension,
)

import openalea.phenomenal.object.voxelSegmentation as phm_seg
from openalea.phenomenal.calibration import Calibration

from openalea.phenotyping_data.fetch import fetch_all_data

1. Load data : 12 binary images, 3D segmentation, 3D->2D projection functions#

[2]:

datadir = fetch_all_data('leaf_extension')

Downloading file 'leaf_extension/0.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/0.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/120.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/120.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/150.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/150.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/180.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/180.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/210.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/210.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/240.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/240.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/270.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/270.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/30.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/30.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/300.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/300.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/330.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/330.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/60.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/60.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/90.png' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/90.png' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/calibration.json' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/calibration.json' to '/home/docs/.cache/phenotyping_data'.
Downloading file 'leaf_extension/segmentation.gz' from 'https://raw.githubusercontent.com/openalea/phenotyping_data/main/data/leaf_extension/segmentation.gz' to '/home/docs/.cache/phenotyping_data'.

[3]:

angles = [a * 30 for a in range(12)]

binaries = {
    angle: cv2.imread(datadir / "{}.png".format(angle), 0)
    for angle in angles
}

# 3D segmentation
seg = phm_seg.VoxelSegmentation.read_from_json_gz(
    datadir / "segmentation.gz"
)

# 3D to 2D projection functions
calibration = Calibration.load(datadir / "calibration.json")
projections = {
    angle: calibration.get_projection(
        id_camera="side", rotation=angle, world_frame="pot"
    )
    for angle in angles
}

2. Leaf extension on a single camera angle#

2D skeletonisation of the binary image#

[4]:

example_angle = 90

binary = binaries[example_angle]
polylines_2d = skeleton_branches(binary)

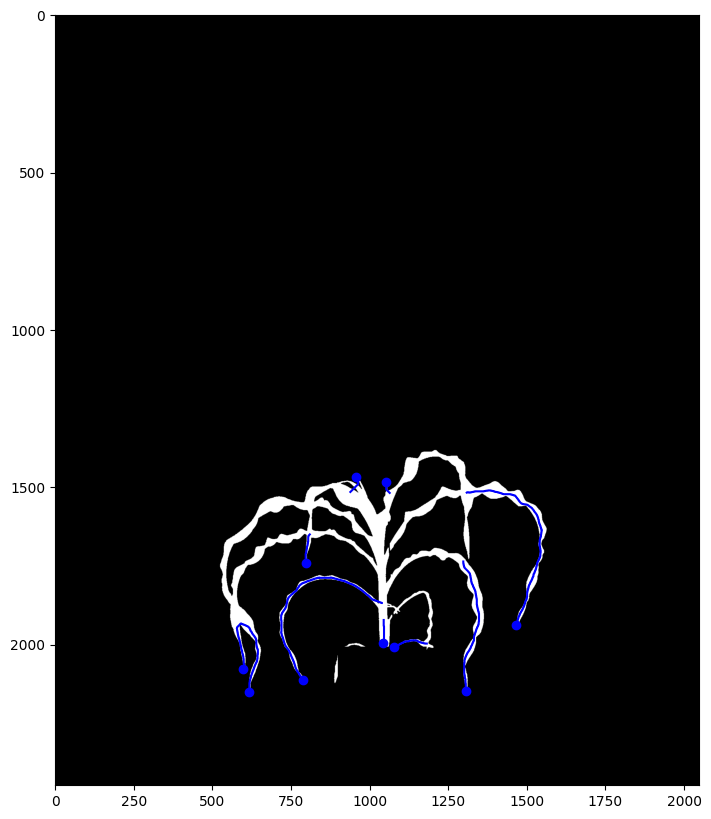

Display it#

  • From the different branches found in the 2D skeleton, only the ones which have an endpoint in the skekeleton graph are saved.

  • These branches are displayed with a blue line below

[5]:

fig, ax = plt.subplots(figsize=(10, 10), dpi=100)
plt.imshow(255 - binary, cmap="Greys")
for pl in polylines_2d:
    plt.plot(pl[:, 0], pl[:, 1], "b-")
    plt.plot(pl[-1, 0], pl[-1, 1], "bo")
../_images/examples_Leaf_extension_9_0.png

Project leaf polylines from the 3D segmentation in 2D#

[6]:

polylines_3d = [
    seg.get_leaf_order(k).real_longest_polyline()
    for k in range(1, 1 + seg.get_number_of_leaf())
]

polylines_3d_to_2d = [projections[example_angle](pl) for pl in polylines_3d]

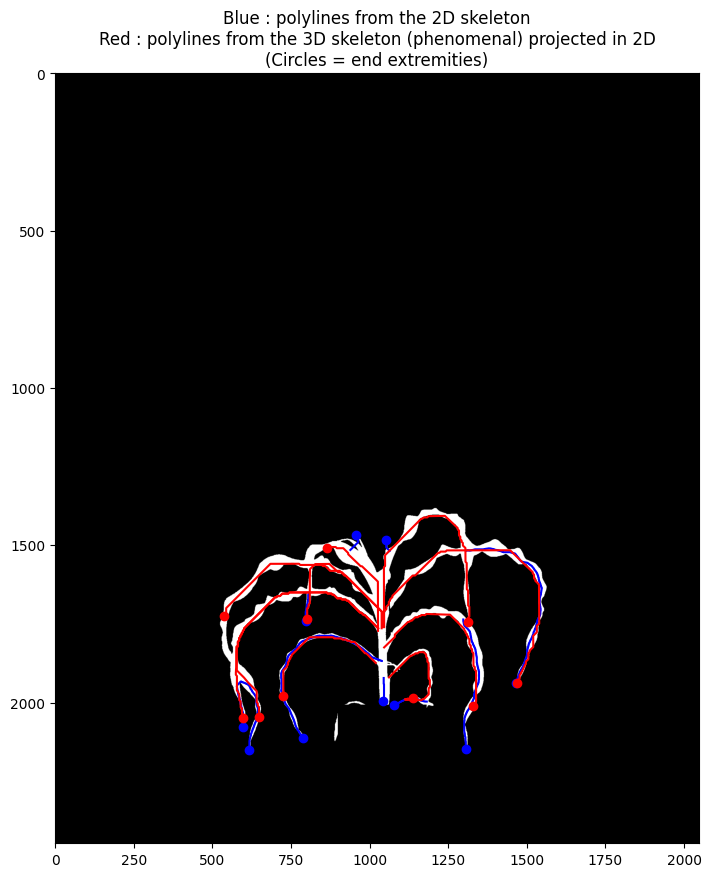

Show the comparison#

  • 3D skeletonisation and segmentation from Phenomenal (red lines below) finds more leaves, and manages leaf overlaps better. However, It sometimes loses the thin ends of the leaves.

  • 2D skeletonisation (blue lines below) finds less leaves, but it is better at reaching the ends of the leaves.

[7]:

fig, ax = plt.subplots(figsize=(10, 10), dpi=100)
plt.imshow(255 - binary, cmap="Greys")
for pl in polylines_2d:
    plt.plot(pl[:, 0], pl[:, 1], "b-")
    plt.plot(pl[-1, 0], pl[-1, 1], "bo")
for pl in polylines_3d_to_2d:
    plt.plot(pl[:, 0], pl[:, 1], "r-")
    plt.plot(pl[-1, 0], pl[-1, 1], "ro")
plt.title(
    "Blue : polylines from the 2D skeleton"
    + "\nRed : polylines from the 3D skeleton (phenomenal) projected in 2D"
    + "\n(Circles = end extremities)"
)

[7]:

Text(0.5, 1.0, 'Blue : polylines from the 2D skeleton\nRed : polylines from the 3D skeleton (phenomenal) projected in 2D\n(Circles = end extremities)')
../_images/examples_Leaf_extension_13_1.png

Compute leaf extension#

This function tries to match both types of polylines. For each match, an extension path is determined, to correct the length measurement for the 3D leaf polyline.

[8]:

extension_factors, extension_polylines = compute_extension(
    polylines_3d_to_2d, polylines_2d
)

Display it#

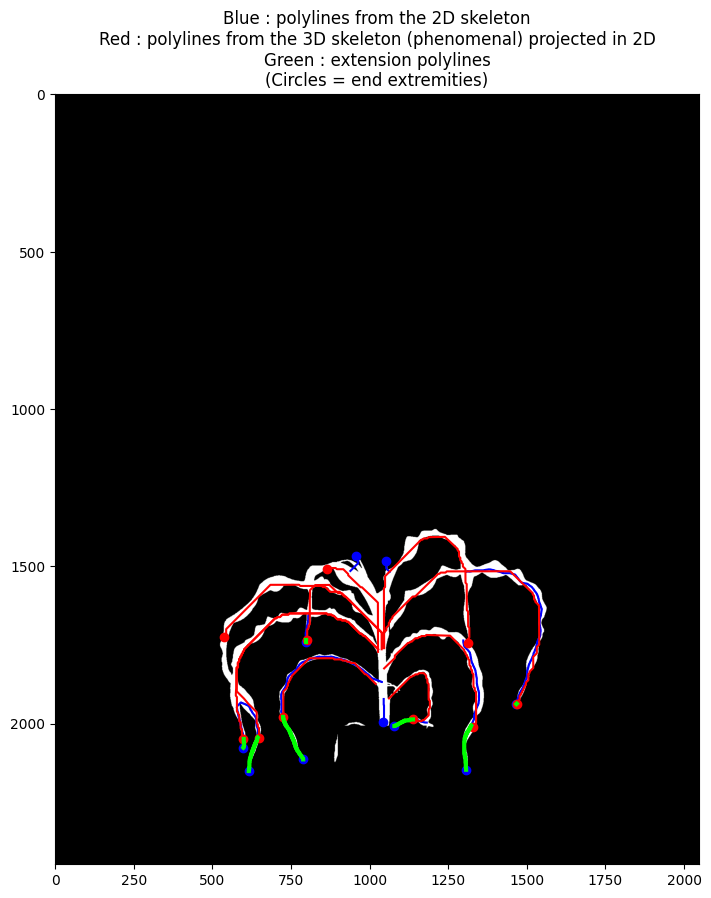

Extension paths are shown in green below

[9]:

fig, ax = plt.subplots(figsize=(10, 10), dpi=100)
plt.imshow(255 - binary, cmap="Greys")
for pl in polylines_2d:
    plt.plot(pl[:, 0], pl[:, 1], "b-")
    plt.plot(pl[-1, 0], pl[-1, 1], "bo")
for pl in polylines_3d_to_2d:
    plt.plot(pl[:, 0], pl[:, 1], "r-")
    plt.plot(pl[-1, 0], pl[-1, 1], "ro")
for pl in extension_polylines:
    plt.plot(pl[:, 0], pl[:, 1], "-", color="lime", linewidth=3)
plt.title(
    "Blue : polylines from the 2D skeleton"
    + "\nRed : polylines from the 3D skeleton (phenomenal) projected in 2D"
    + "\nGreen : extension polylines"
    + "\n(Circles = end extremities)"
)

[9]:

Text(0.5, 1.0, 'Blue : polylines from the 2D skeleton\nRed : polylines from the 3D skeleton (phenomenal) projected in 2D\nGreen : extension polylines\n(Circles = end extremities)')
../_images/examples_Leaf_extension_17_1.png

3. Combine leaf extensions from multiple angles to improve the leaf length measurements#

Multi angle leaf extension#

[10]:

new_seg = leaf_extension(seg, binaries, projections)

Compare the old and new length values for each leaf#

[11]:

import pandas as pd

df = []
for leaf in new_seg.get_leafs():
    old_length = (
        leaf.info["pm_length_with_speudo_stem"]
        if leaf.info["pm_label"] == "growing_leaf"
        else leaf.info["pm_length"]
    )
    new_length = leaf.info["pm_length_extended"]
    df.append([old_length, new_length])
df = pd.DataFrame(df, columns=["old_length", "new_length"])
print(df)

    old_length   new_length
0   882.634413   920.760006
1   888.846210   989.510047
2  1113.715331  1127.716974
3   958.860955   958.860955
4   583.266099   588.177819
5   732.548340   732.548340
6   423.815983   423.815983
7   688.504210   833.738112
8   458.404626   525.178288
9   506.886426   666.138000
